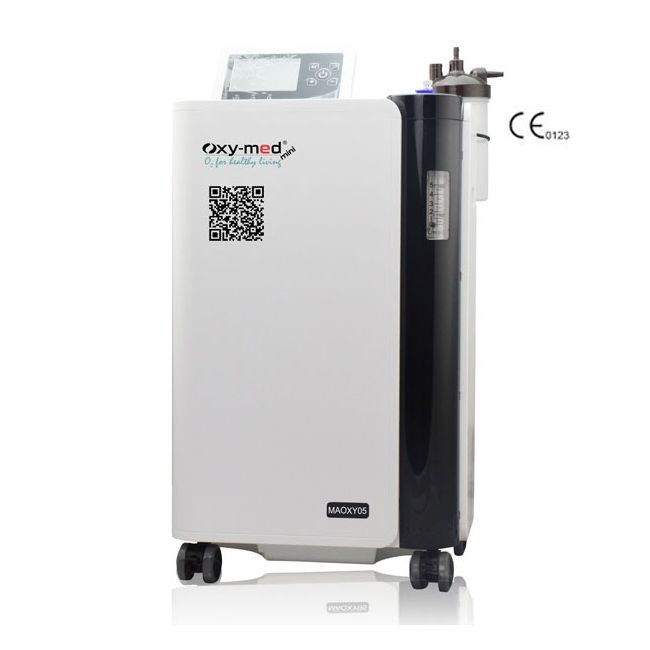

Oxy-med Mini Oxygen Concentrator is portable, small oxygen concentrating equipment which uses Pressure Swing Adsorption technology. It separates oxygen from atmospheric air and produces oxygen continuously. It is used to assist the treatment of pulmonary diseases and obstructive lung diseases. It is applicable to hospitals and home use. It has oxygen generating host, flow indicator, warning system and nebulization interface.

SPECIFICATIONS: -

Operating Environment:

Temperature                                                :               +5˚C ~ +40˚C

Humidity                                                      :               15% ~ 93%

Technical Parameters:

                Rated power                                 :               390 VA

                Working Voltage                           :               230V

                Rated Flow                                   :               5 L/Min

                Oxygen Concentration                   :               93 ± 3%

                Nebulizer Function                        :               Yes

                Noise                                           :               ≤40 Db (A)

                Weight                                         :               13.9 KG

                Dimension (mm)                          :               314 x 240 x515

                Outlet Pressure                            :               40 – 80 Kpa

                Low purity Alarm                          :               Yes

                High/Low Pressure Alarm              :               Yes

                High/Low Voltage Alarm                :               Yes

                Flow Indicator                               :               Yes

                SPO2 Sensor Interface                   :               Yes
